Visat Barrel Pvt. Ltd. manufactures precision-engineered MS and GI steel barrels — stainless, open-mouth, close-mouth, welded, composite, gooseneck, epoxy and conical drums for oils, chemicals and hazardous cargo.

01

SS 304 · Triple seam · 100% leak-proof

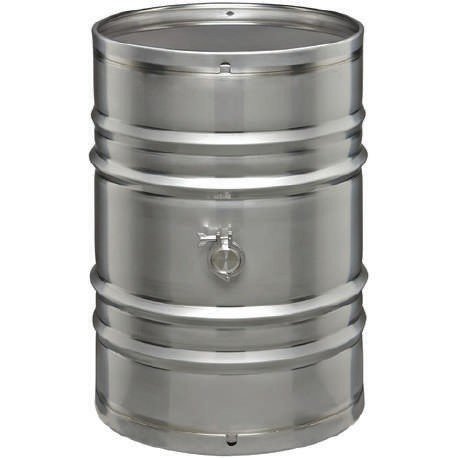

Stainless Steel Barrels

Manufactured from SS 304 in 20g and 18g thickness. Triple seamed with specialised seaming compound for complete leak-proof performance — trusted for high-value cargo such as tea tree oil and premium essential oils.

210 LTR 235 LTR

Applications

Premium essential oils
Food-grade liquids
Pharmaceutical fluids

Spec	210 LTR	235 LTR
Outer Diameter	585 mm ± 2	858 mm ± 2
Inner Diameter	571 mm ± 2	571 mm ± 2
Outer Height	885 mm ± 5	1000 mm ± 5

02

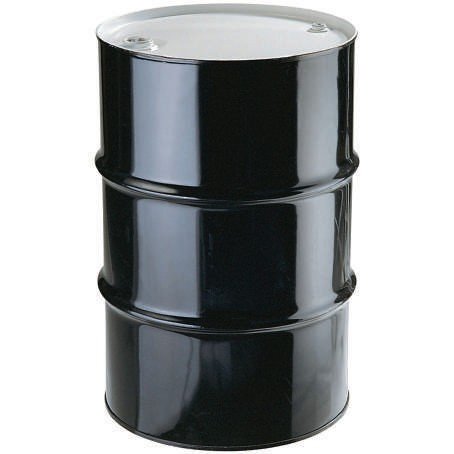

Close Mouthed Barrels

Available in 22g, 20g and 18g thickness with double or triple spiral seams. Manufactured from CRCA D-grade sheets per BIS 1783 — sturdy and safe for exporting liquids. Optional interior epoxy coating.

210 LTR 235 LTR

Applications

Starch
Pesticides
All types of oils
Hazardous chemicals

Spec	210 LTR	235 LTR
Outer Diameter	585 mm ± 2	858 mm ± 2
Inner Diameter	571 mm ± 2	571 mm ± 2
Outer Height	885 mm ± 5	1000 mm ± 5
Thickness	0.8 / 1 / 1.2 mm	1 / 1.2 mm

03

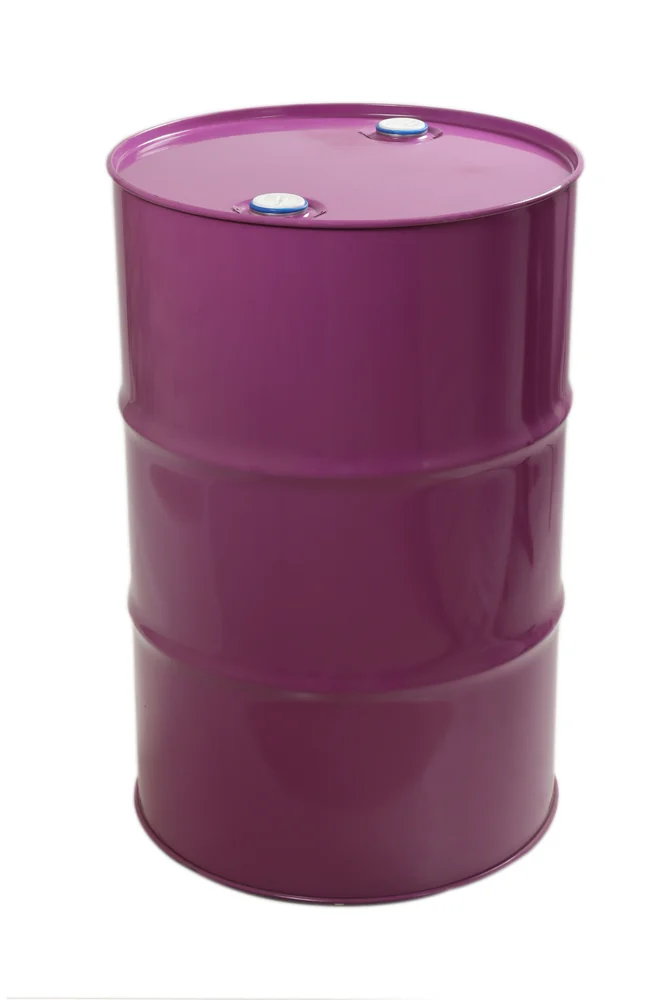

Composite Barrels

These drums are manufactured in two different thickness like 20 g and 18 g. They are manufactured in triple spiral seam with plastic liner inside of different thickness as per parties requirement. These drums are generally used for packing of highly hazardous products like pesticides and acids and are leak proof as it is manufactured with double protection one is steel layer and another is plastic layer.

Spec
Outer Dimensions	885 MM + 2 MM
Inner Dimensions	571 MM + 2 MM
Outer Height	890 MM + 5 MM
Thickness	1.2 MM

04

Open Mouthed Barrels

These drums are manufactured in different thickness as per requirement of customer like 22 g, 20 g and 18 g. They are manufactured only in triple spiral seam and are manufactured from crca sheets d grade. These drums are used for packing of any type liquid gels, powder and any solid products. They are provided with different type of locking rings and gaskets like lever type locking or nutbolt type locking to make it air tight to avoid any type of leakages. These drums are also available with inside epoxy coating.

210 LTR 235 LTR

Spec	210 LTR	235 LTR
Outer Dimensions	607 MM + 2 MM	607 MM + 2 MM
Inner Dimensions	571 MM + 2 MM	571 MM + 2 MM
Outer Height	880 MM + 5 MM	970 MM + 5 MM
Thickness	0.8 MM / 1 MM / 1.2 MM	1 MM / 1.2 MM

05

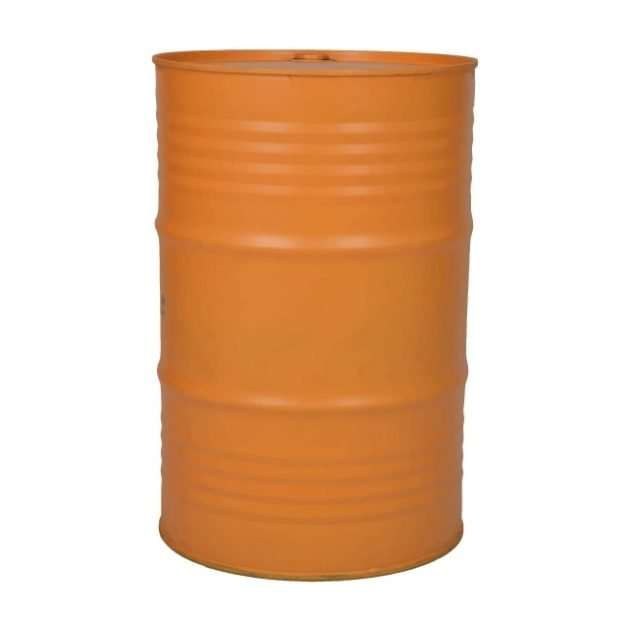

All Joints Welded Barrels

These drums are manufactured in 18 g thickness only. They are manufactured in both double seam and triple spiral seam and then all joints in the barrels are mig welded to make it 100 % leak proof. These drums are very special and used in packing of very hazardous products and chemicals. They are available with inside epoxy coating also.

210 LTR

Spec	210 LTR
Outer Dimensions	858 MM + 2 MM
Inner Dimensions	571 MM + 2 MM
Outer Height	885 MM + 5 MM
Thickness	1 MM / 1.2 MM

06

Gooseneck Barrels

These drums are manufactured in both 20 g and 18 g thickness. They are generally manufactured with full open top for a very special purpose and are manufactured from crca sheet d grade. The very special thing about this drums is the shape of drum itself which is very unique. The other salient features of this drums is that when it is exported in a container, a normal open mouth drum comes 72 nos in one 20 ft container but in case of goose neck drums it comes to 80 nos which saves the transportation cost and it also prevents from any damage in the drums during transportation because of its unique shape which fixes the drums one above the other in the container. These drums are also available with epoxy coating inside.

210 LTR

Spec	210 LTR
Outer Dimensions	585 MM + 2 MM
Inner Dimensions	571 MM + 2 MM
Outer Height	880 MM + 5 MM

07

Epoxy Barrels

These drums are manufactured in two different thickness like 20 g and 18 g. They are manufactured in triple spiral seam with plastic liner inside of different thickness as per parties requirement. These drums are generally used for packing of highly hazardous products like pesticides and acids and are leak proof as it is manufactured with double protection one is steel layer and another is plastic layer.

210 LTR 235 LTR

Spec	210 LTR	235 LTR
Outer Dimensions	607 MM + 2 MM	607 MM + 2 MM
Inner Dimensions	571 MM + 2 MM	571 MM + 2 MM
Outer Height	880 MM + 5 MM	970 MM + 5 MM
Thickness	0.8 MM / 1 MM / 1.2 MM	1 MM / 1.2 MM

08

Conical Drum Barrels

Conical Drums are specially designed containers with a tapered (cone-shaped) bottom that allows complete discharge of materials without residue. They are widely used in pharmaceutical, chemical, food processing, cosmetic, and manufacturing industries.

210 LTR 220 LTR

Spec	210 LTR	220 LTR
Outer Dimensions	565 mm	565 mm
Inner Dimensions	560 mm	560 mm
Outer Height	980 + 5 mm / 1000 + 5 mm	980 + 5 mm / 1000 + 5 mm
Thickness	0.7 mm / 0.8 mm / 1 mm	0.7 mm / 0.8 mm / 1 mm
